XCMG factory XS203J 20 ton vibratory rc new single drum road roller

XCMG factory XS203J 20 ton vibratory rc new single drum road roller

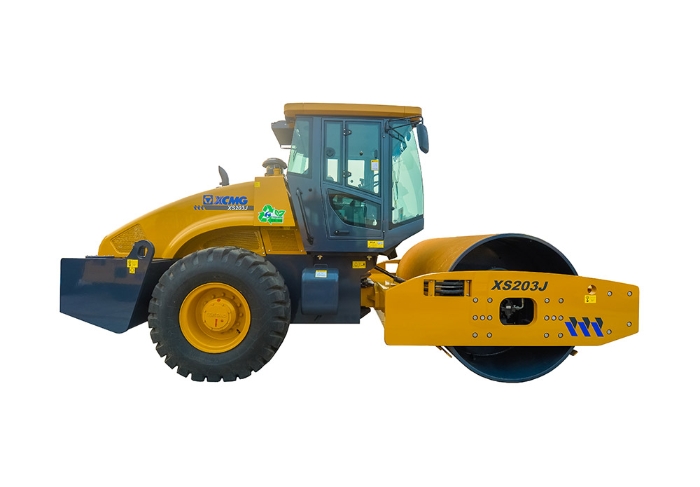

XCMG factory XS203J 20 ton vibratory rc new single drum road roller compactor machine.
XS203J vibratory roller is a highly efficient and energy-saving super heavy machinery driven single drum vibratory roller independently developed by XCMG.This product is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, as well as the compaction of concrete and stabilized soil base materials in various large projects. It is the ideal compaction equipment for the construction of high-grade highways, airports, harbors, dams and industrial construction sites. Performance Characteristics:1.The Shangchai CHina-ll turbocharged low speed diesel engine is adopted to achieve the best fuel consumption working area and reduce the comprehensive fuel consumption by 10%; The low-speed diesel engine reduices noise emission and enhances the leakproofness of the whole engine to reduce noise by 2dB; Optimized transmission system matching to achieve the best compaction speed and increase the efficiency by 8%. 2.The vibration damping device with combined stiffness is adopted in the cab and frame, multidimensional reduction of cab vibration, significantly improves the working comfort of the operator. 3.Scientific and reasonable air duct design, the air conditioning system radiates heat independently to ensure sufficient air intake and improve the heat dissipation ability comprehensively, ensuring efficient operation of power system. 4. Electro-hydraulic control of the power shift gearbox, with independent intellectual property rights of the new electric control shift lever, significantly increase the operation comfort. 5. Using advanced hydraulic damping control technology, optimized vibration parameters, reliability and work quality is greatly improved.
Model Unit XS203J
Operating weight kg 20000
Load applied on front drum kg 10000
Static linear load N/cm 470
Travel Speed km/h 3-9.4
Theoretical gradeability % 30
Min. outer turning radius mm 6500
Steering angle ° ±33
Oscillating angle ° ±10
Vibration frequency Hz 33/28
Nominal amplitude (high/low) mm 1.9/0.95
Exciting force (high/low) kN 353/245
Drum width mm 2130
Drum Diemeter mm 1600
Engine model   Shanghai Diesel Engine SC8D175.2G2B1
Rater Power kW 128
Engine oil consumption g/kW.h 205
Hydraulic tank capacity L 170
Fuel tank capacity L 310
Dimension(L*W*H) mm 6220*2430*3200
