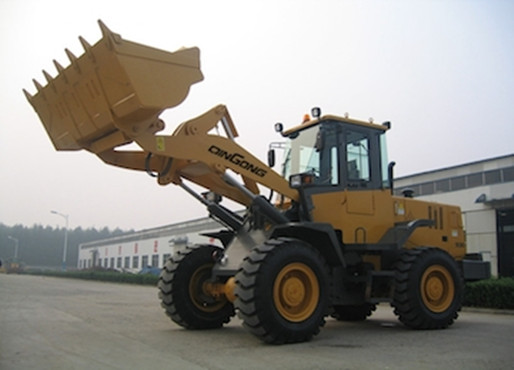

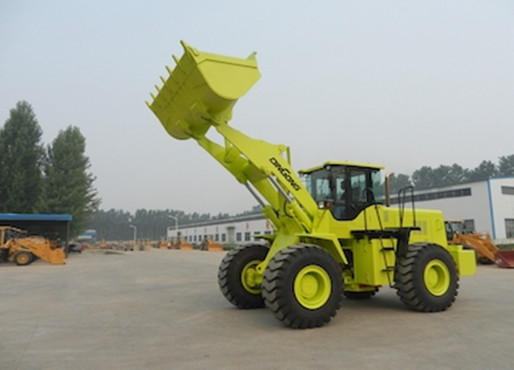

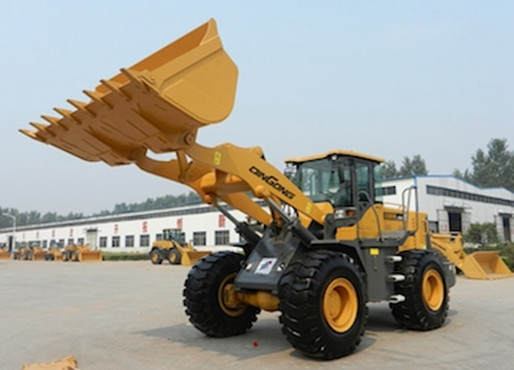

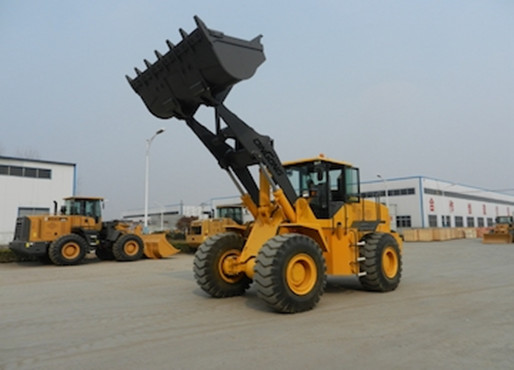

Wheel Loader ZL50G

QINGONG Wheel Loaders ranges from 1.6 ton to 6.o ton on loading capacity, including ZL16F, ZL20F, 836, 856, ZL50G, 966, etc.

We are making use of the product development of Cat's wheel loader advanced technique, the manufacturing technique, the management technique and strong funds real strength builds up the manufacturing base that the high quality with a competition ability, we establish the value as the direction of the marketing and the service network, hence carrying out a target of being the profession leader!

Email: export@qingoing.cn

MAIN SPECIFICATIONS
Rated load	5000kg
Overall weight	16200kg
Rated bucket capacity	3m3
Maximum tractive force	156kn
Breakout force	185kn
Maximum grade ability	28
Maximum dump height	3115mm
Max. dump reach	1300mm
Overall length	8020mm
Overall width	3070mm
Overall height	3400mm
Minimum turning radius	7760mm
Engine
Model	Cummins 6CTA8.3-C215
Rated power	162kw—2200r/min
Transmission
Torque converterYJ375
Maximum speed	38km/h
Gearbox mode	power shift
Gear shift	4 forward shift 4 reverse shift
Axles
Main reducing spiral bevel gear grade 1 reduction
Decelerating mode planetary reduction grade 1
Wheel base	3200mm
Wheel tread	2250mm
Minimum ground clearance	430mm
Brake system
Service brake air over hydraulic disc brake on 4 wheels
Parking brake Shut off the air brake inner expand hoot
Hydraulic system
System working pressure	16mpa
Boom lifting time	5.95±0.2s
Total time	11s
Fuel tank capacity	300L
Function of leveling automatically	yes
Tire
Type specification	23.5-25
Front tyre pressure	0.32Mpa
Rear tyre pressure	0.29Mpa
Cabine
An ergonomically designed sound proof cabine, enabling wide operational view
