MODEL |

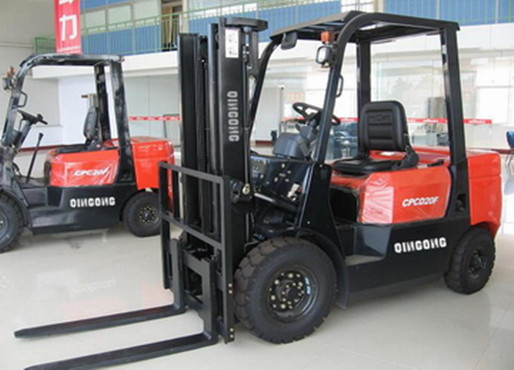

CPCD 20F |
||
|
Load capacity kg |
2000 |
||
|
Load center mm |
500 |
||
|
Power type |
Diesel |
||
|
Max.lifting speeds(with load) mm/s |
400 |
||
|
Max.Driving speeds(with without load) km/h |
17/19 |
||
|
Max.Towing(with without load) kN |
12.7/8.3 |
||
|
Gradeability(with/without load) % |
15/20 |
||
|
Lifting height mm |
3000 |
||
|
Free lift mm |
60 |
||
|
Tilting angles(forward-backward) |
6/12 |
||
|
Min.turning radius mm |
2200 |
||
|
Min.right angle aisle width mm |
1950 |
||
|
Min.under-clearance mm |
110 |
||
|
Dimensions |
Overall length mm |
3470 |
|
|
Overall width mm |
1160 |
||
|
Overall height(mast lowered) mm |
2095 |
||
|
Overall height(mast extend) mm |
4060 |
||
|
Overall height to overhead guard mm |
2095 |
||
|
Fork overhang mm |
451 |
||
|
Wheel base mm |
1640 |
||
|
Tread Tyre |
Front tread mm |
970 |
|
|
Rear tread mm |
970 |
||
|
Front tyre |
7.00-12 |
||
|
Rear tyre |
6.00-9 |
||
|
Total weight kg |
3320 |
||
|
Fork width mm |
122 |
||
|
Fork thickness mm |
40 |
||
|
Backrest height mm |
1000 |
||
|
Fork length mm |
1070 |
||
|
Engine |
Engine model |
A490BPG |
|
|
Rate power KW |
37 |
||
|
Ratate Speed At Rate Power rpm |
2650 |
||
|
Max.torque Nm |
148 |
||
|
Rotate speed at max torque rpm |
1800-1900 |
||
|
Type of power shift |
Clutch |
Tor-con(Hydraulic) |
|
